Connecting the FT232RL programmer to electronic modules.

This section provides connection examples for the FT232RL programmer modified according to the SPP scheme for the EP program function according to the SPP scheme.

Connectors made according to the SPP scheme are also used.

Washing machines.

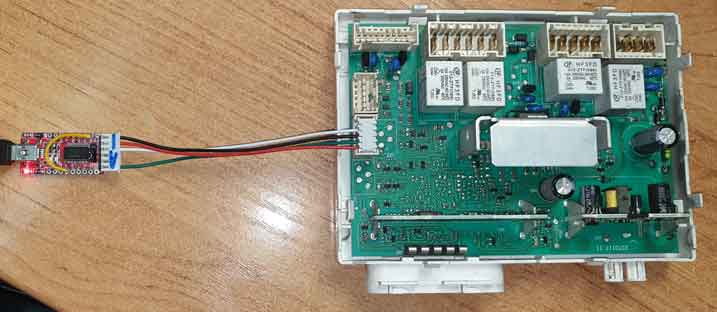

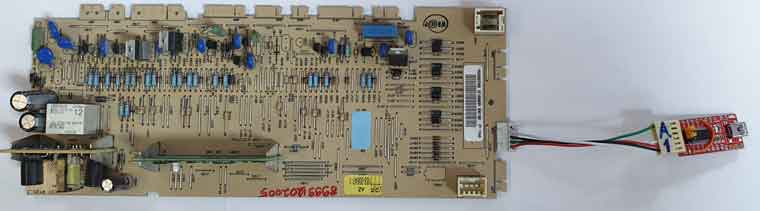

For ARCADIA 1 and ARCADIA 2 with a soldered socket, use connector A1.

The power jumper must be set to 5 volts.

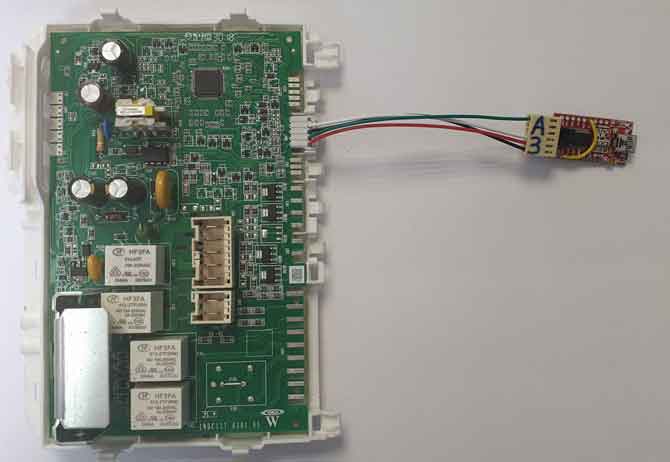

To connect ARCADIA 2, ARCADIA 3 and WINDY with a connector at the end of the board, you can use connectors A1 and A3, but A3 is more convenient here, because it has a guide in the plug        .

Examples with collector modules are shown below.

The power jumper must be set to 5 volts.

Three-phase modules are connected in the same way, through the slot for the indication board.

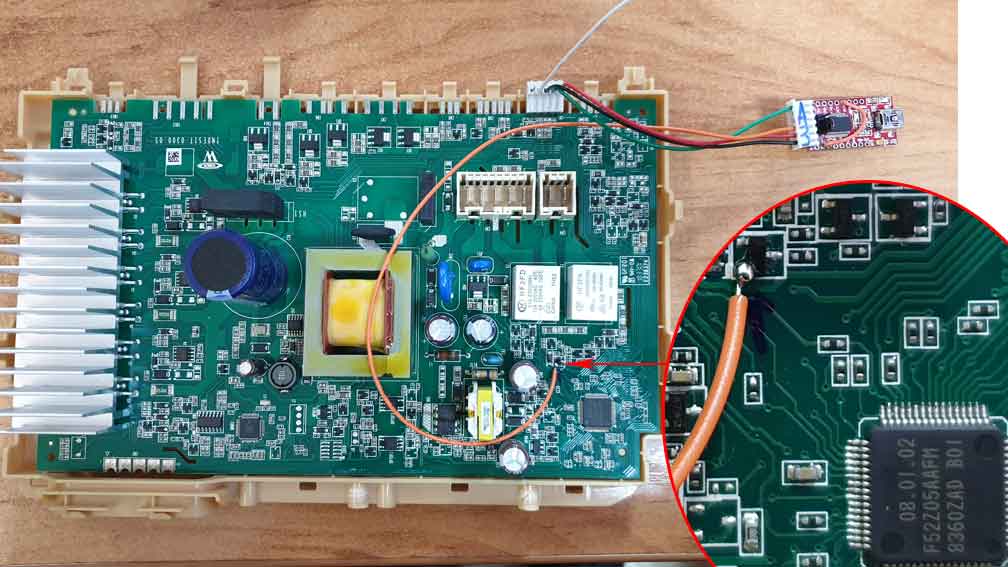

ACU Windy Strip Cim modules with SW (FW) 35.00.XX deserve special attention

If the power supply supplied through the indication connector is not enough, then you can supply power directly to the microcontroller.

For example, as in the photo below (the white wire is not connected, set the power on the programmer to 3.3 Volts):

Refrigerators.

CLEVER, ARTICA ENTRY

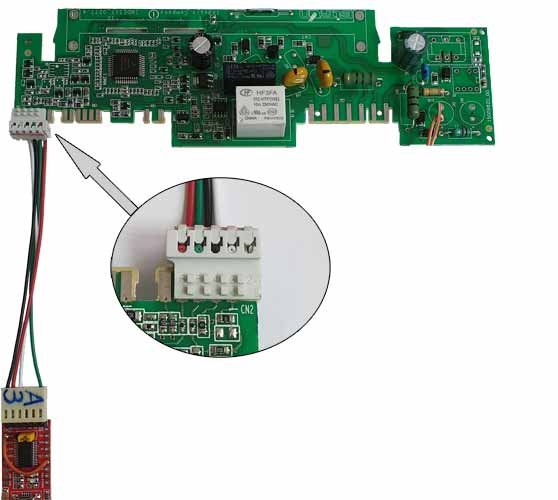

Connect through the service connector, the designation on the board is CN2 and J013. The power jumper must be set to 5 volts.

Here you can use connectors A1 and A3, while the latter is more convenient to use because of the guide in the plug.

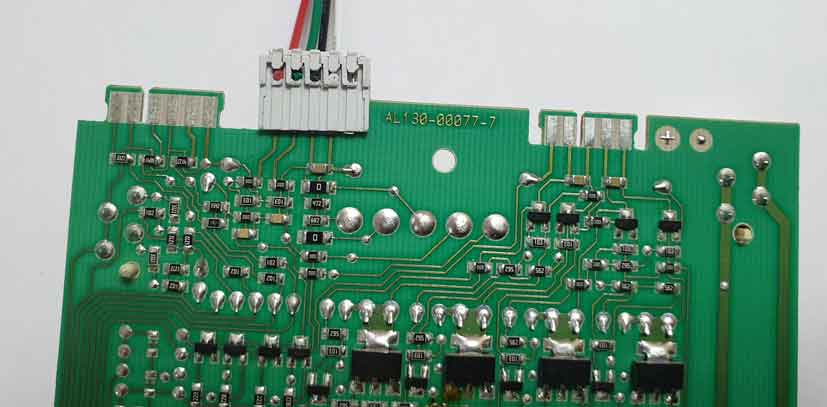

In the following variant, only connector A1 is suitable, because the guide does not line up with the groove.

Dishwashers.

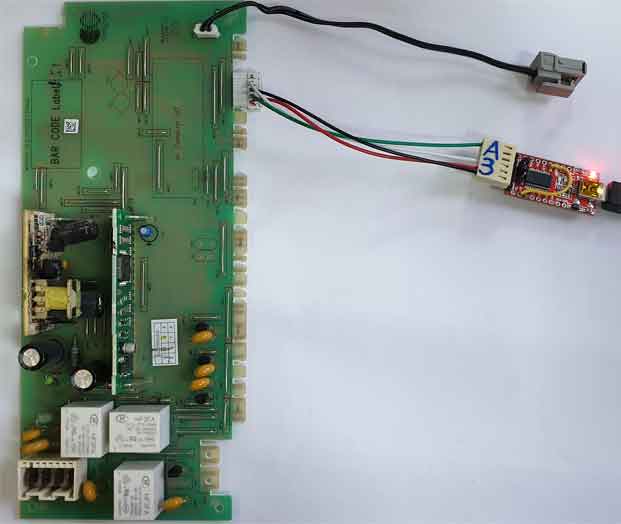

DEA 602

Use connector A1 or A3. The designation of the socket on the board is CN08.

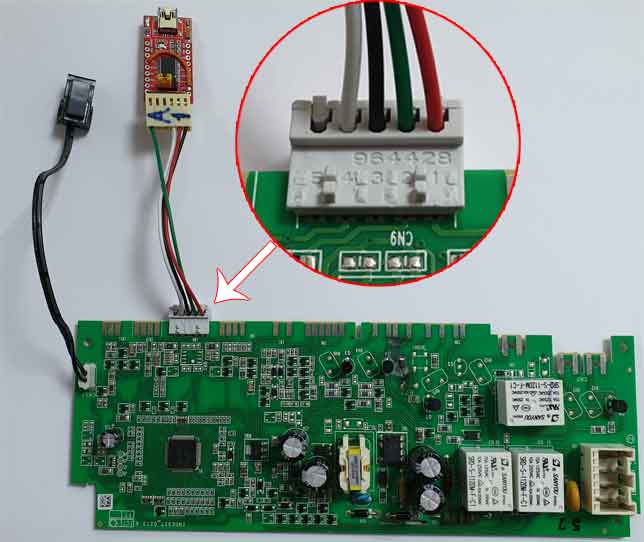

DEA 603

Use connector A1. The designation of the socket on the board is CN9.

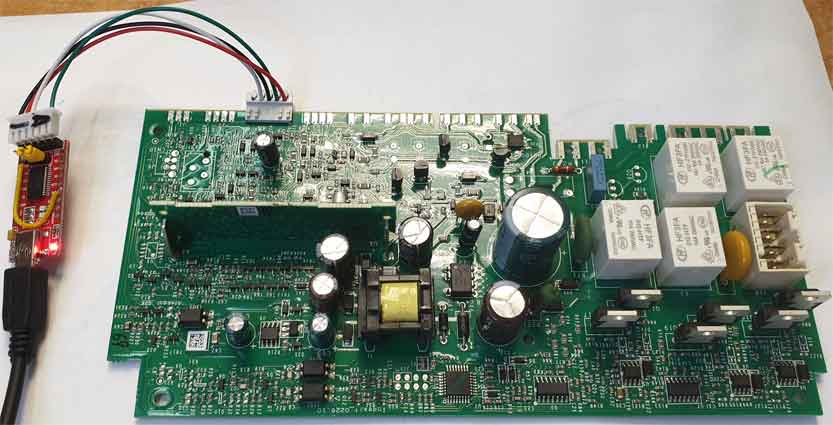

DEA 700

Use connector A1. The designation of the socket on the board is J8.

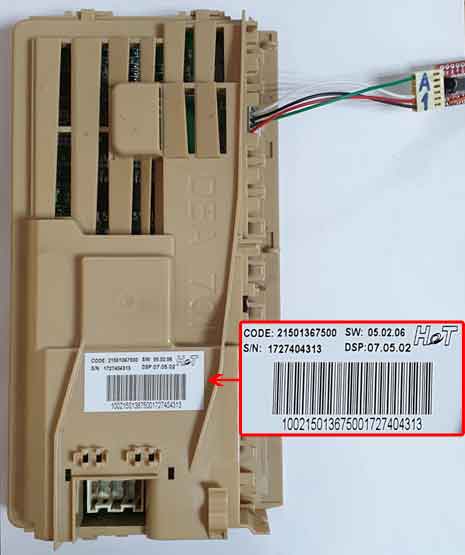

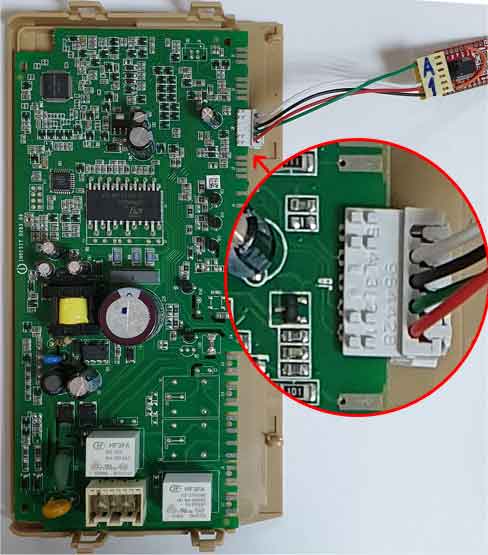

DEA 701

Use connector A1. The designation of the socket on the board is J8.
