To achieve the full functionality of the program, namely to test the components of the washing machine (and later, perhaps, other products), galvanic isolation will be required.

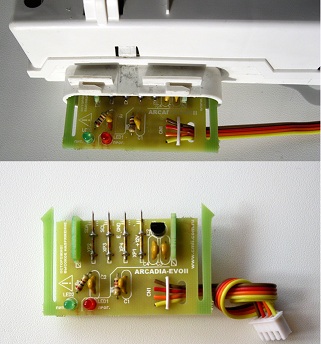

This is a ready-made solution for connecting a computer, a programmer and a ARCADIA PCB.

With this connection, you need to apply to the PCB the power 220 volts.

This device is no longer manufactured.


http://www.cmli.com.ru/ru/eshop/prodelinvgrp/elinvindesitcon-detail.html

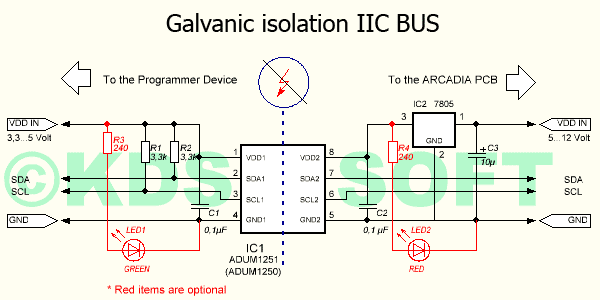

Below is the electrical circuit of the device.
