Note!

This revision is intended for EP and Candy functions.

NOT for RS function.

Attention!

In program version 1.14, a new mode of working with this programmer in bitbang mode has appeared, and starting from version 1.15 it is already set by default: FT_MODE = 1 (see program settings). When the programmer works in this mode, this modification is not required!


If you are having difficulty working with ARCADIA 3 and/or WINDY electronic modules using the USB programmer on the FT232RL chip, you need to make the following improvements:

Solder a 560 picoFarad capacitor to the SDA and Vcc pins.

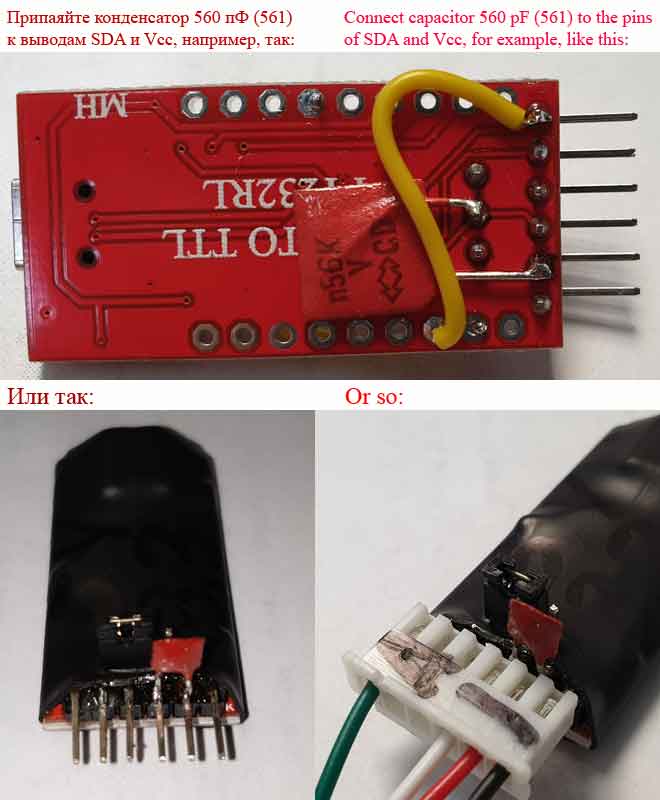

The figure below shows examples.
